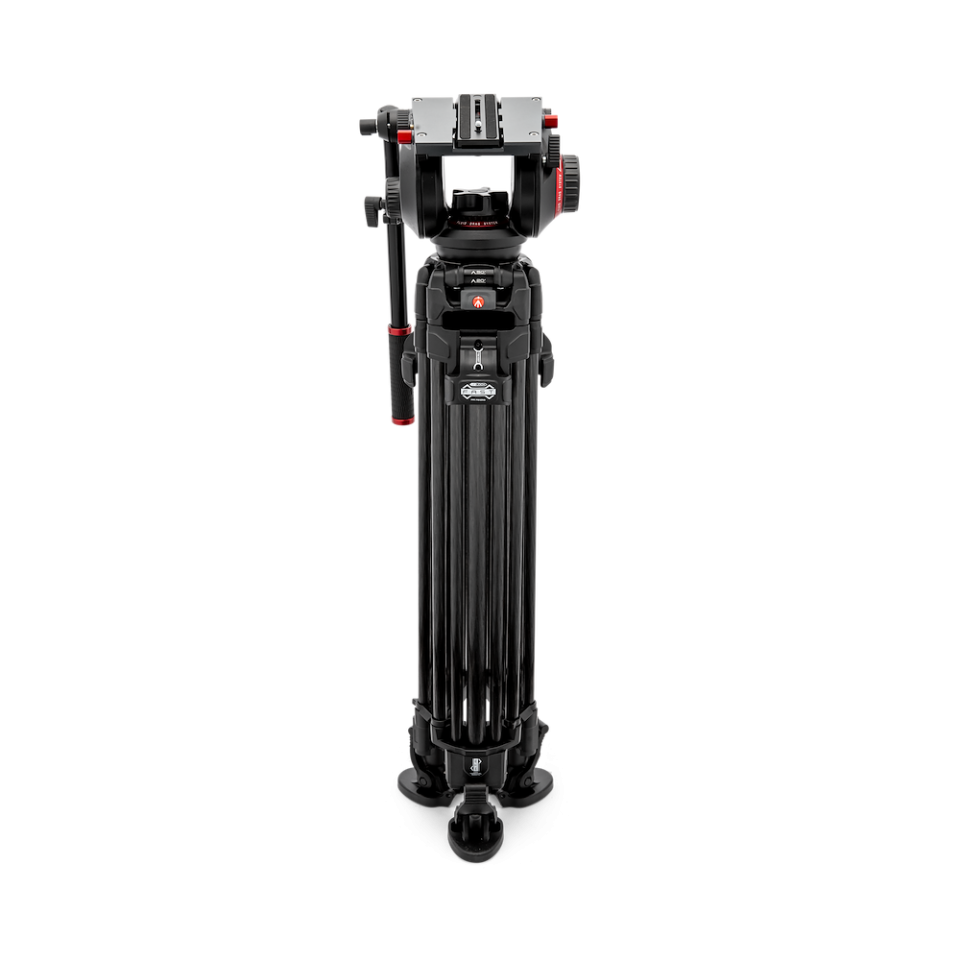

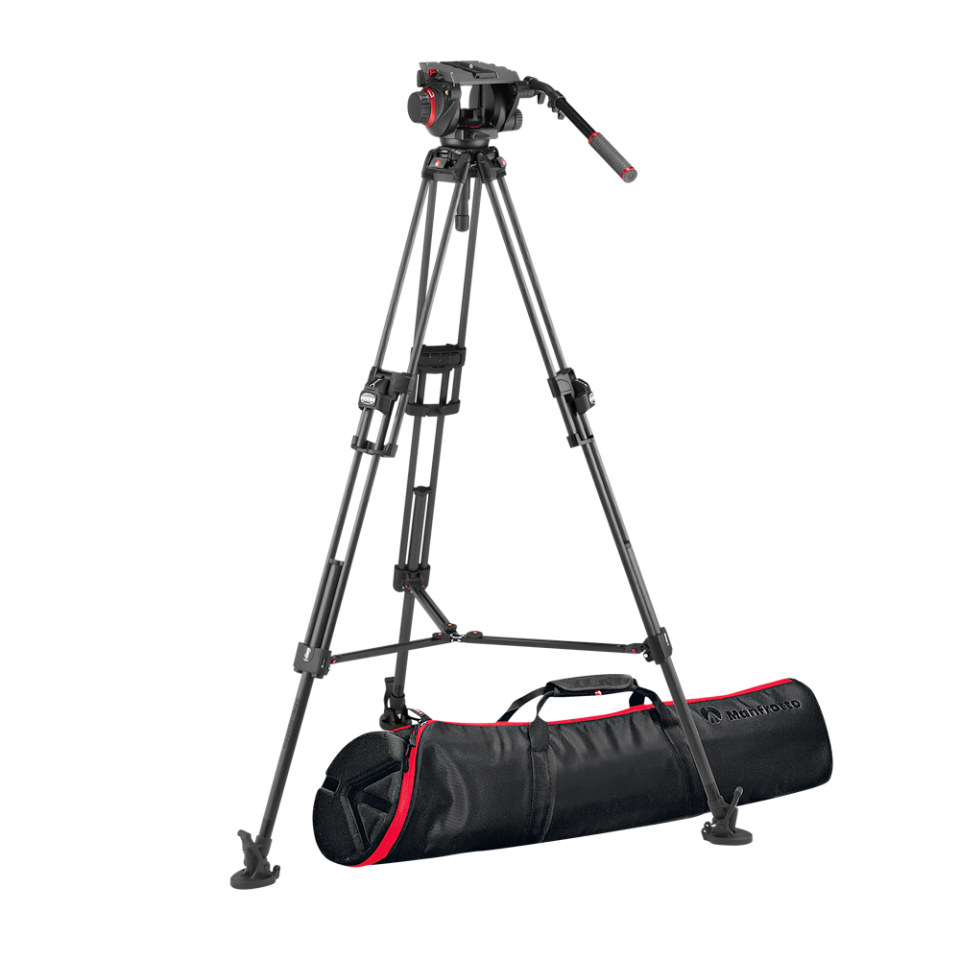

Manfrotto 509 Video Head with 645 Fast Twin CF leg Tripod kit (MVK509TWINFC)

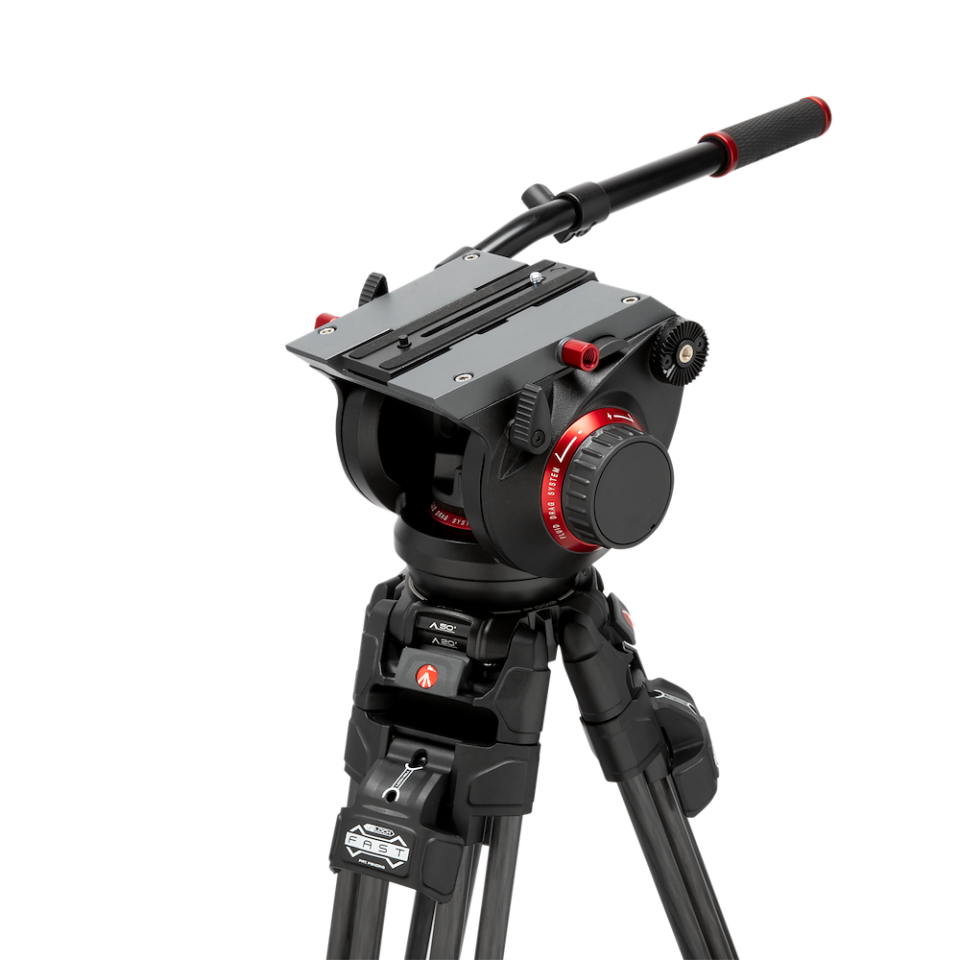

The 509HD fluid head combines ergonomic design features with professional performance. To help you obtain incredibly smooth camera movements and great footage, the 509HD has variable fluid drag and a fast, precise, 4-step counterbalance system that makes it suitable for a wide range of semi-professional and professional camera setups. The 509HD’s patented Advanced Balancing Recorder (ABR) allows you to quickly find, memorise and regain the correctly balanced plate position when using a particular combination of equipment. The 509HD also features Easy Link connectors for easy accessory attachment, an illuminated levelling bubble and replaceable rosettes for pan bar attachment on both sides of the head. The 509HD has a 100mm half ball video tripod mount.

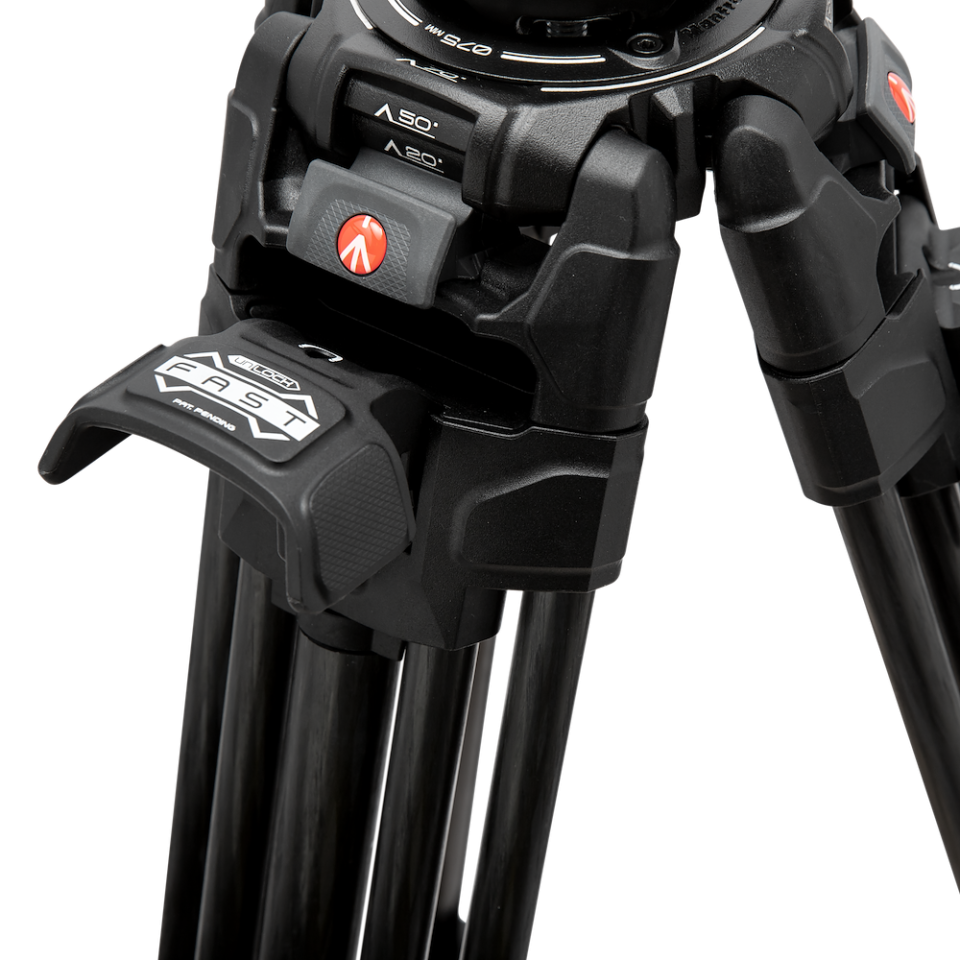

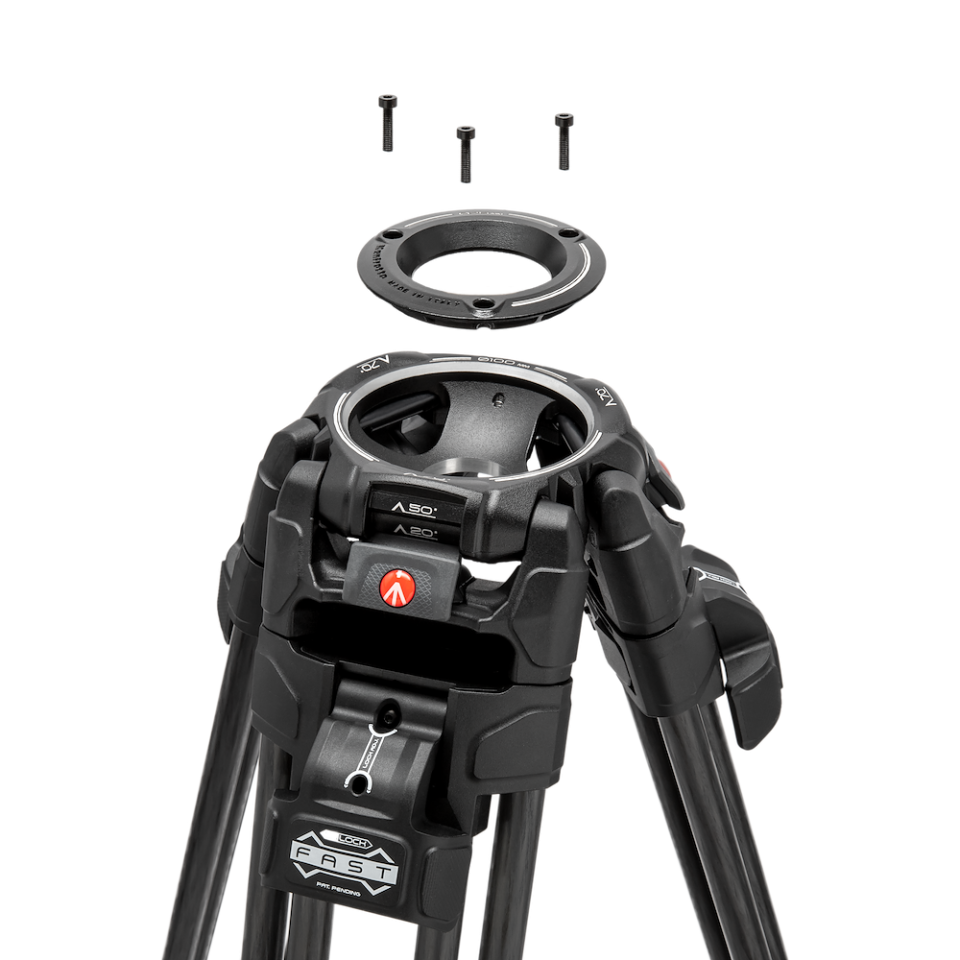

The 645 FTT Fast Twin Carbon Tripod features a double tubing and FAST Lever Lock technology for the most robust support ever. The tripod is provided with a 2 in 1 half ball: a standard 100mm bowl compatible with a 75mm adapter (available as accessory) to enable the use of a wider range of video heads. It also features a middle spreader lock. However, the 3-angle selectors make the use of a spreader a matter of optional preference.

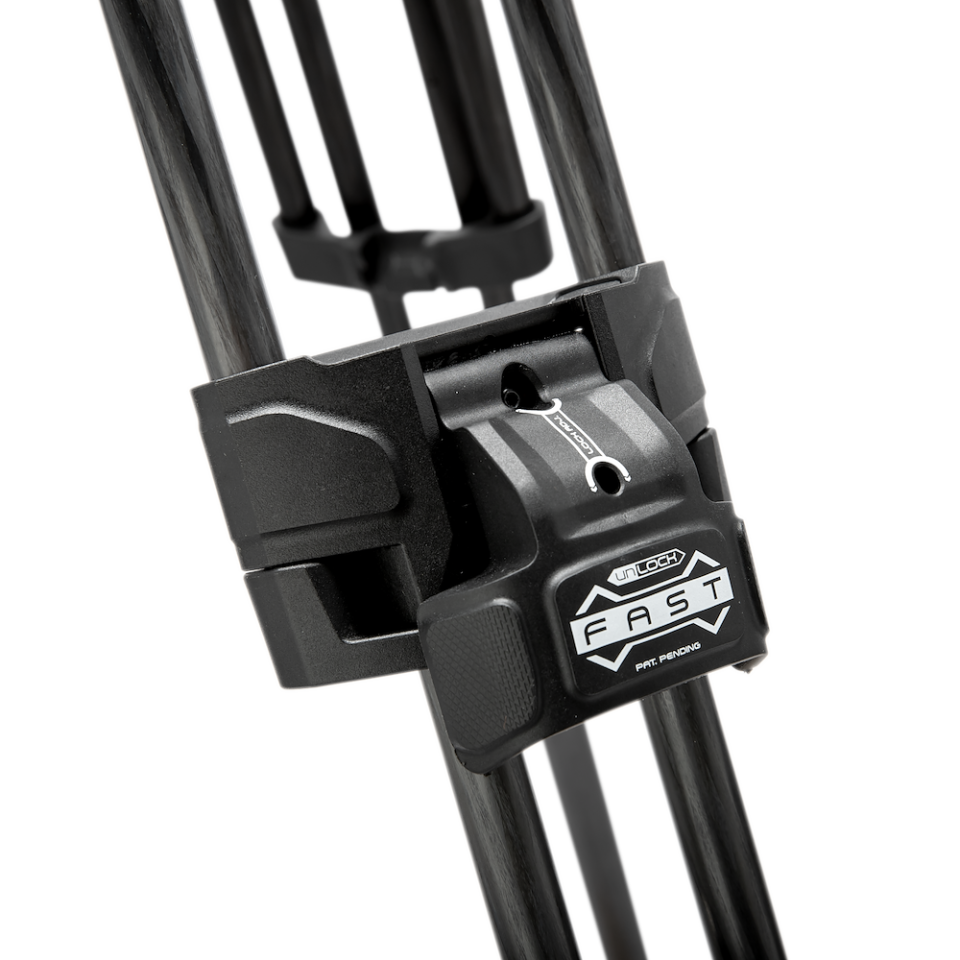

This range was developed with the primary objective of making video shooting easier by reducing set up times and maintenance. The synchronized closure mechanisms between the upper and lower locks, enable videographers to control the entire leg with a single lock and get to work in record time. The new tripod provides maximum versatility, supporting the use of a broad choice of heads, and ensuring the utmost rigidity while also being extremely lightweight.
Moreover, it comes with the 2 in 1 ground and middle telescopic spreader and it features a 3-angle selection mechanism for easy set up. It is equipped with spiked feet with rubber overshoes for a firm grip and adaptability to the most diverse shooting locations.

Specifications

Weight: 7.5 kg

Safety Payload UNI/PdR 105:2021: 13.5 kg

Counterbalance Weight: 8.5 kg

Maximum Height: 173 cm

Min Height: 43.5 cm

Bubble Spirit Level (No.): 1

Center of gravity: 125 mm

Carrying Bag Included: MB MBAG100PN

Certifications: WEEE; RoHS

Closed Length: 89.5 cm

Colour: Black

Top Attachment: 1/4″ screw, 3/8″ screw

Ball Flat: 100 Ball

Powered by (batteries): Lithium

Easy Link: Yes

Front Tilt: -60° / +90°

Head Type:Video/Fluid Head

Leg Type: Twin

Leg Angles: 20°, 50°, 70°

Leg Lock Type: Flip Lock

Leg Sections: 3

Material: Carbon fiber

Maximum Working Temperature: 60 °C

Minimum Working Temperature: -20 °C

Pan Bar Included: Yes

Pan Drag: continuously adjustable from 0 to max level

Panoramic Rotation: 360 °

Plate Type: 509PLONG

Quick Release: Yes

Spreader: Low & Mid level – Variable arm leg

Tilt Drag: continuously adjustable from 0 to max level

Accessory Compatibility: 502HLV; 509HLV; 114MV; 181B; 565
