Description

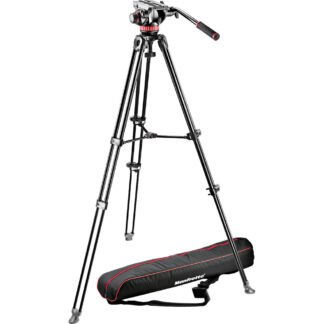

This video system includes the Manfrotto 504X Fluid Video Head and the MVTTWINMA aluminium twin leg with middle spreader tripod.

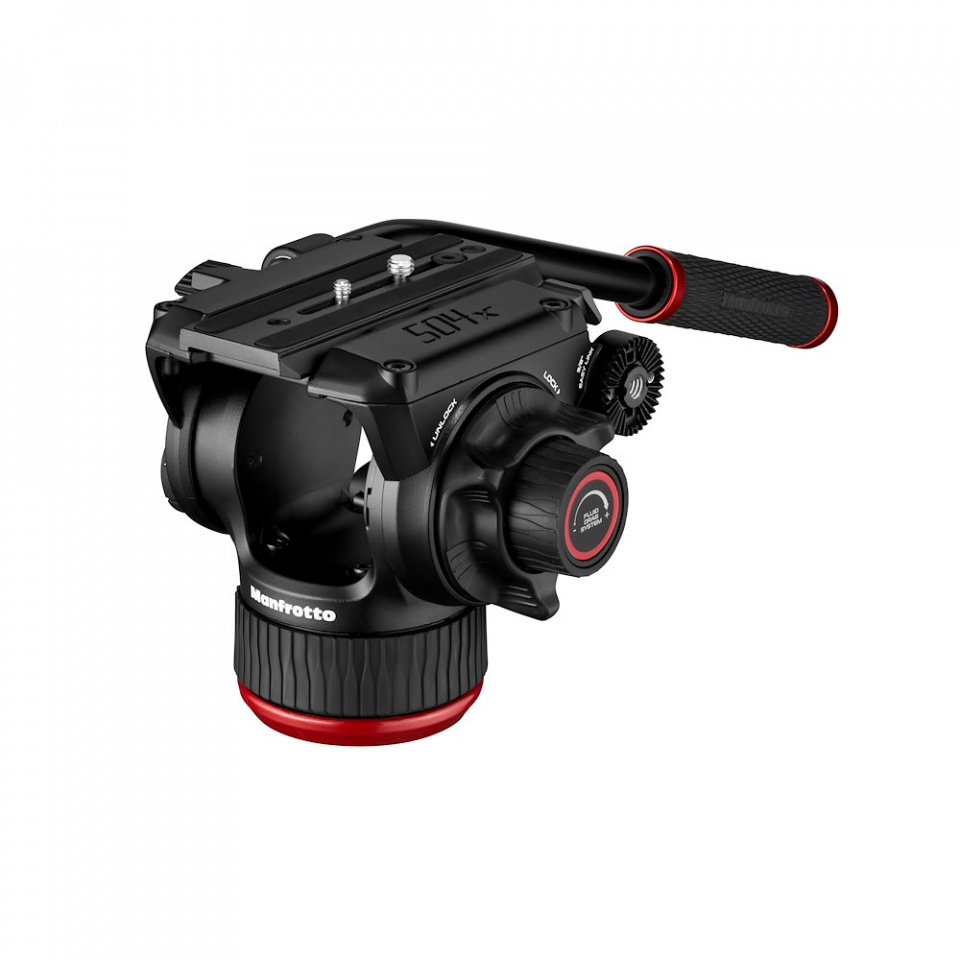

The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 6.5 kg at 55 mm C.O.G.
The head is made from a brand-new catching aluminium design and has a maximum payload of 12 kg.
It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.

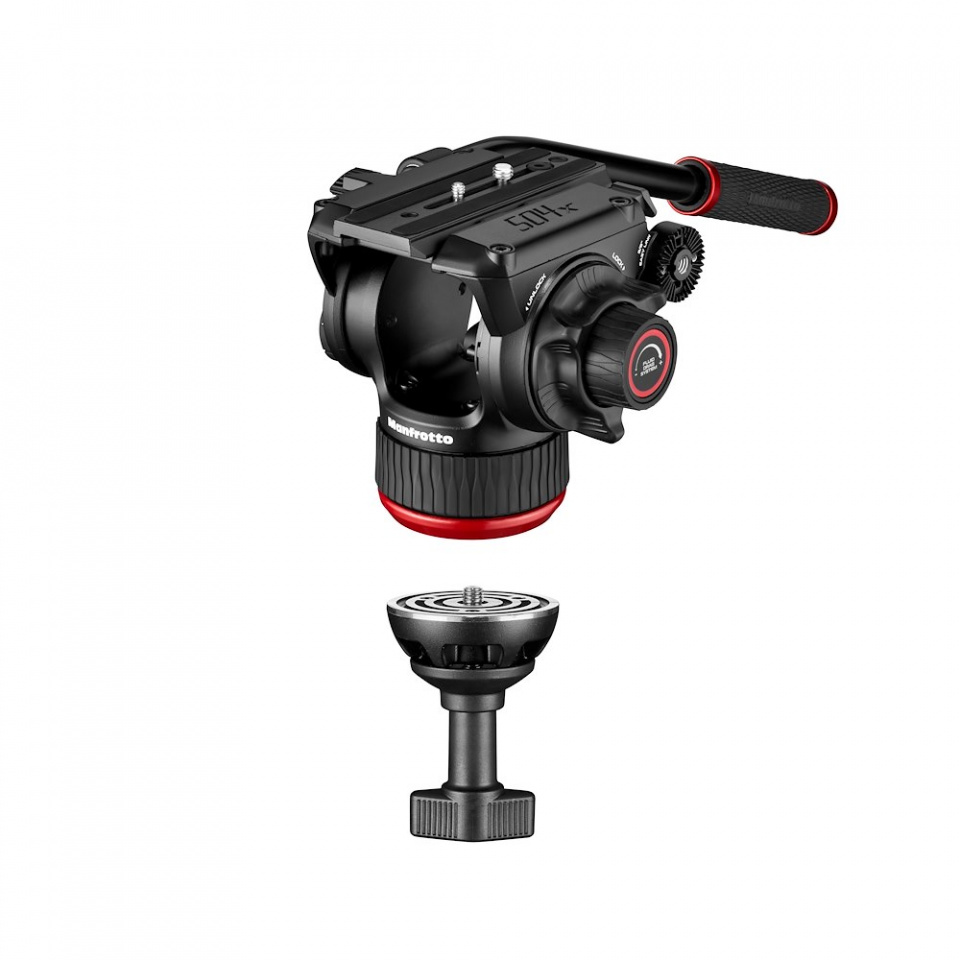

The head attaches to the tripod via a dedicated 75mm half ball.

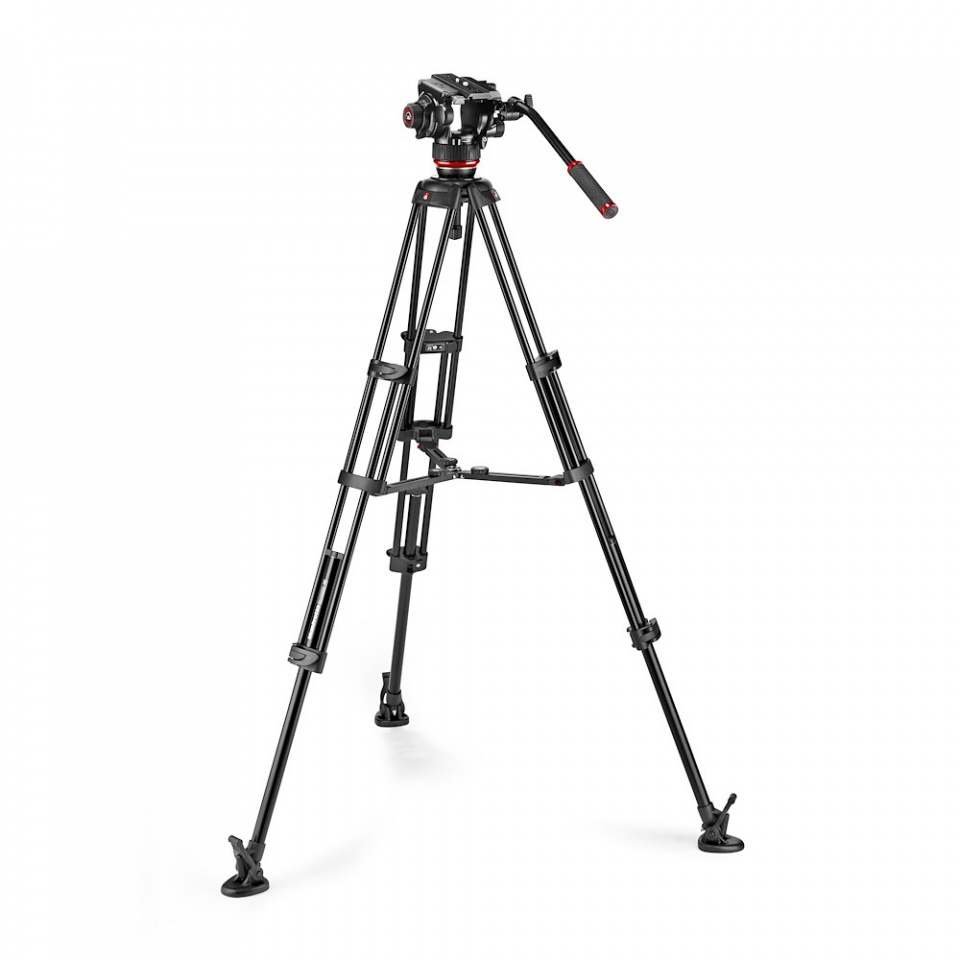

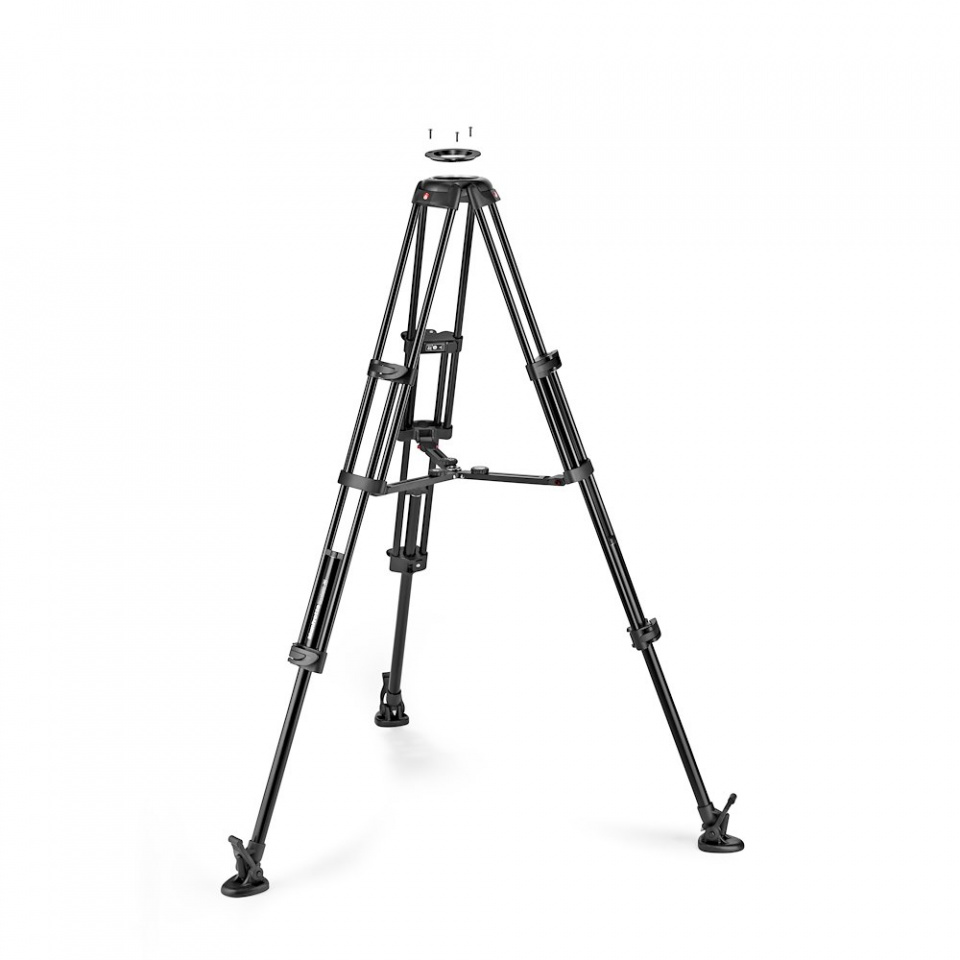

The MVTTWINMA aluminium twin leg with middle spreader video tripod is a professional-quality tripod with a two-stage, rigid and stable design making it ideal for all kinds of assignments. If you want to create professional level video or films, then this is the must-have tripod. It features an aluminum casting 100mm bowl and it comes with an aluminum adapter that converts the bowl into a 75mm.
The tripod has mid-level spreader with telescopic arms that helps you to set leg
Specifications
Weight: 5.6 kg
Safety Payload UNI/PdR 105:2021: 12 kg
Counterbalance System: Variable Steps
Counterbalance Weight: 2.2, 4.4, 6.5 kg
Maximum Height: 169 cm
Min Height: 75 cm
Base Diameter: 75 mm
Bubble Spirit Level (No.): 1
Center of gravity: 55 mm
Carrying Bag Included: yes
Center Column: no centre column
Closed Length: 86 cm
Colour: Black
Top Attachment: 1/4″ screw, 3/8″ screw
Ball Flat: Flat
Safety Payload Weight: 12 kg
Powered by (batteries): Lithium
Easy Link: Yes (with antirotation)
Front Tilt: -70° / +90°
Head Type: Video/Fluid Head
Leg Type: Twin
Leg Lock Type: Flip Lock
Material: Aluminium
Maximum Working Temperature: 60 °C
Minimum Working Temperature: -30 °C
Pan Bar Included: Yes
Pan Drag: continuously adjustable from 0 to max level
Panoramic Rotation: 360 °
Plate Type: 504PLONGR-1
Quick Release: Yes
Spreader: mid level – variable arm length
Tilt Drag: continuously adjustable from 0 to max level
Accessory Compatibility: 114MV; 181B; 165MV; MVAPANBARM; MVAPANBARL
