Manfrotto 504X Fluid Video Head with Alu Twin leg tripod MS



Rīgas noliktavā: 1

Alumīnija dubultkāju video komplekts ar šķidro kasešu 504X video galvu
Speciālās šķidruma kasetes gan uz horizontālās, gan vertikālās un ass.
Taisnas pamatnes video galva
Pretsvara balanss līdz 6,5 kg
75mm puslodes galvas adapters
100mm puslodes video kājas ar diviem augstuma regulētājiem
Max.kravnesība līdz 12 kg
Kāju vidusdaļas fiksators
Soma komplektā


This video system includes the Manfrotto 504X Fluid Video Head and the MVTTWINMA aluminium twin leg with middle spreader tripod.

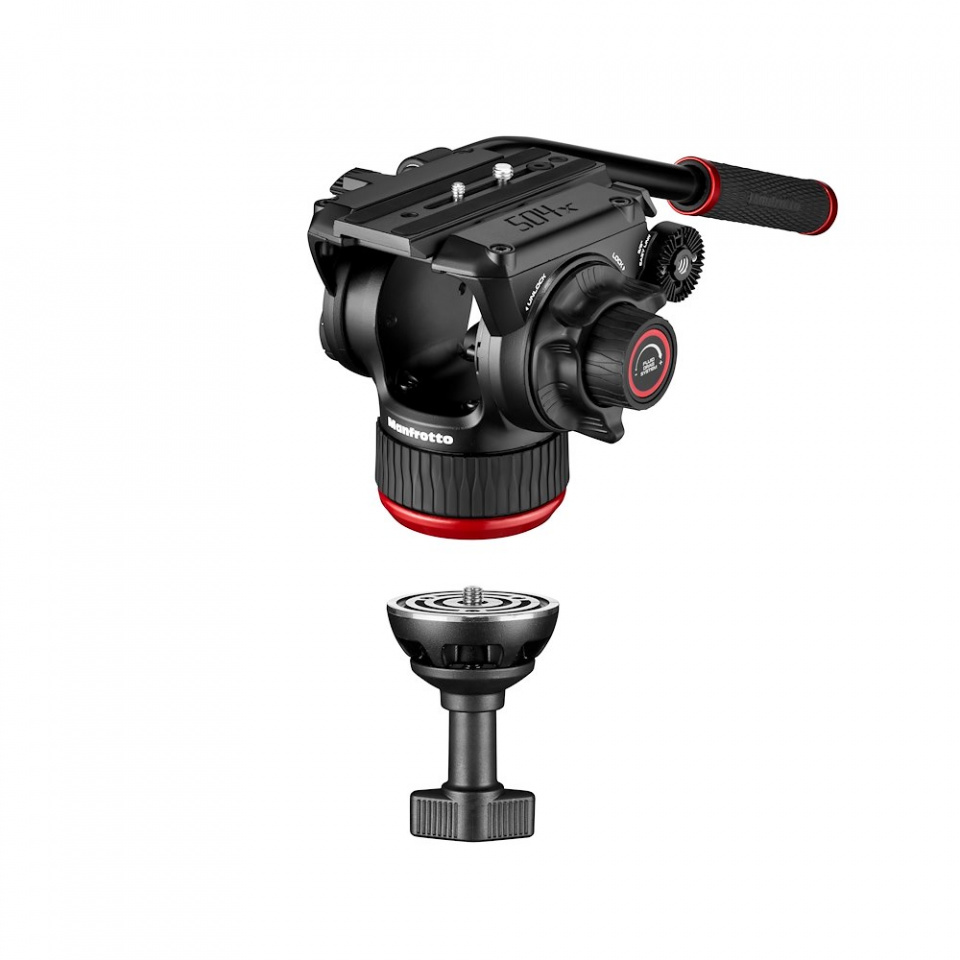

The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 6.5 kg at 55 mm C.O.G.

The head is made from a brand-new catching aluminium design and has a maximum payload of 12 kg.

It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.

The head attaches to the tripod via a dedicated 75mm half ball.

The MVTTWINMA aluminium twin leg with middle spreader video tripod is a professional-quality tripod with a two-stage, rigid and stable design making it ideal for all kinds of assignments. If you want to create professional level video or films, then this is the must-have tripod. It features an aluminum casting 100mm bowl and it comes with an aluminum adapter that converts the bowl into a 75mm.

The tripod has mid-level spreader with telescopic arms that helps you to set leg


Weight: 5.6 kg

Safety Payload UNI/PdR 105:2021: 12 kg

Counterbalance System: Variable Steps

Counterbalance Weight: 2.2, 4.4, 6.5 kg

Maximum Height: 169 cm

Min Height: 75 cm

Base Diameter: 75 mm

Bubble Spirit Level (No.): 1

Center of gravity: 55 mm

Carrying Bag Included: yes

Center Column: no centre column

Closed Length: 86 cm

Colour: Black

Top Attachment: 1/4″ screw, 3/8″ screw

Ball Flat: Flat

Safety Payload Weight: 12 kg

Powered by (batteries): Lithium

Easy Link: Yes (with antirotation)

Front Tilt: -70° / +90°

Head Type: Video/Fluid Head

Leg Type: Twin

Leg Lock Type: Flip Lock

Material: Aluminium

Maximum Working Temperature: 60 °C

Minimum Working Temperature: -30 °C

Pan Bar Included: Yes

Pan Drag: continuously adjustable from 0 to max level

Panoramic Rotation: 360 °

Plate Type: 504PLONGR-1

Quick Release: Yes

Spreader: mid level – variable arm length

Tilt Drag: continuously adjustable from 0 to max level

Accessory Compatibility: 114MV; 181B; 165MV; MVAPANBARM; MVAPANBARL

Papildu informācija

Svars7 kg
Dimensijas100 × 25 × 25 cm
Video statīva tips

Twin legs

Video statīva komplektācija

Ar galvu

Video statīva materiāls


Video statīva max kravnesība

> 8kg
