Manfrotto 504X Head with 536 CF Single leg tripod kit (MVK504XCTALL)

Pay in three equal instalments 3 x 366,33



Pre Order

Video kit with 536 CF Carbon fiber single leg tripod and 504X Fluid Video head

• Video head: Manfrotto 504X fluid video head with flat base
• Legs: Manfrotto 536 CF Carbon fiber single leg tripod
• Load capacity: 12 kg
• Max. height: 218 cm
• Min. height: 42 cm
• Closed Length: 87 cm
• Base area: 75 cm
• Counterweight: 2.2, 4.4, 6.5 kg
• Material: Carbon fiber
• Attachment: Top: 1/4″& 3/8″ screws, Side: 2 Easy Link 3/8″ connectors (with antirotation)
• Plate Type: 504PLONGR-1
• Legs bowl: 100 mm, with adapter that reduces the diameter to 75 mm
• Carrying Bag Included: yes
• Weight: 5.84 kg

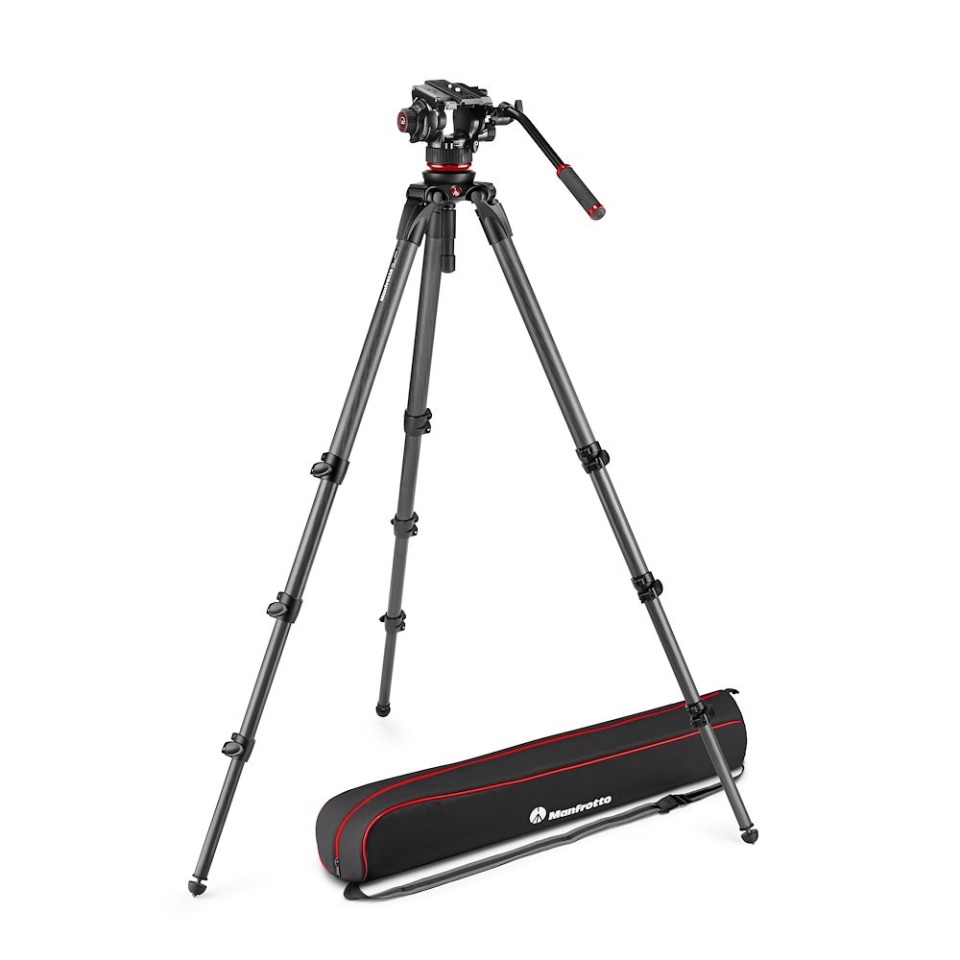

This video system includes the Manfrotto 504X Fluid Video Head and the 536 Single Leg Carbon Tripod.

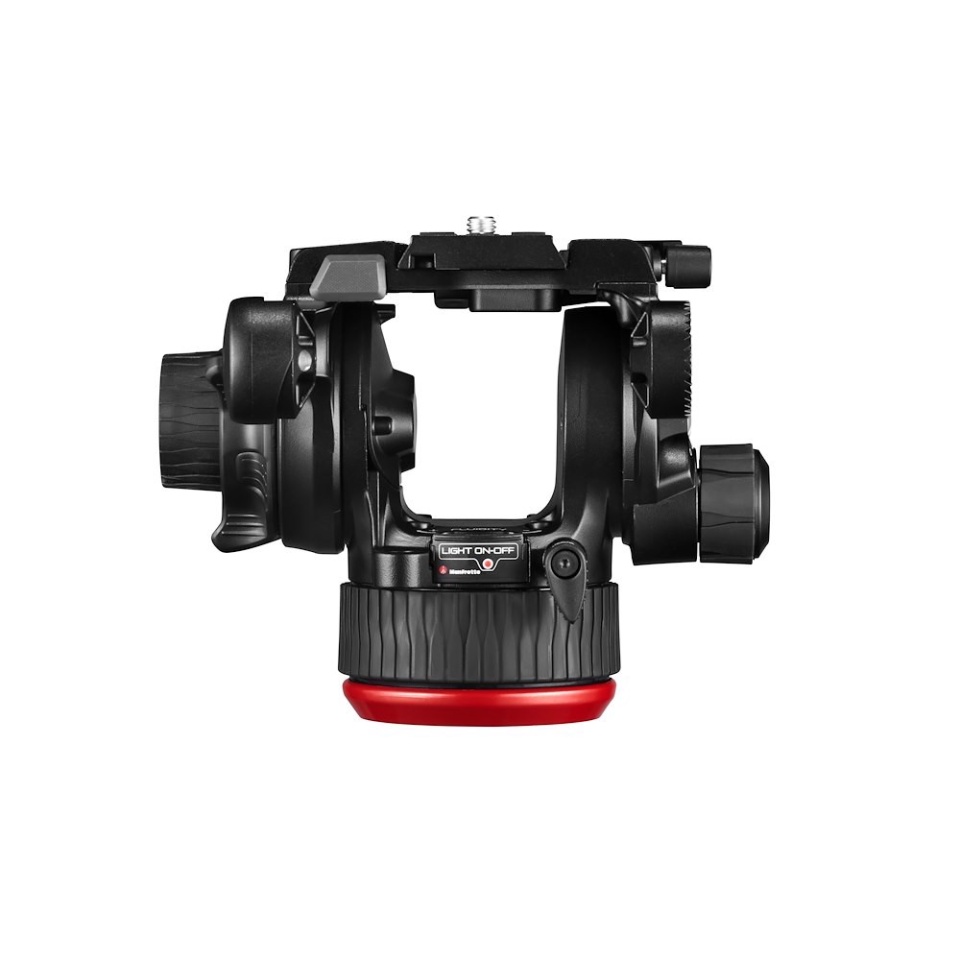

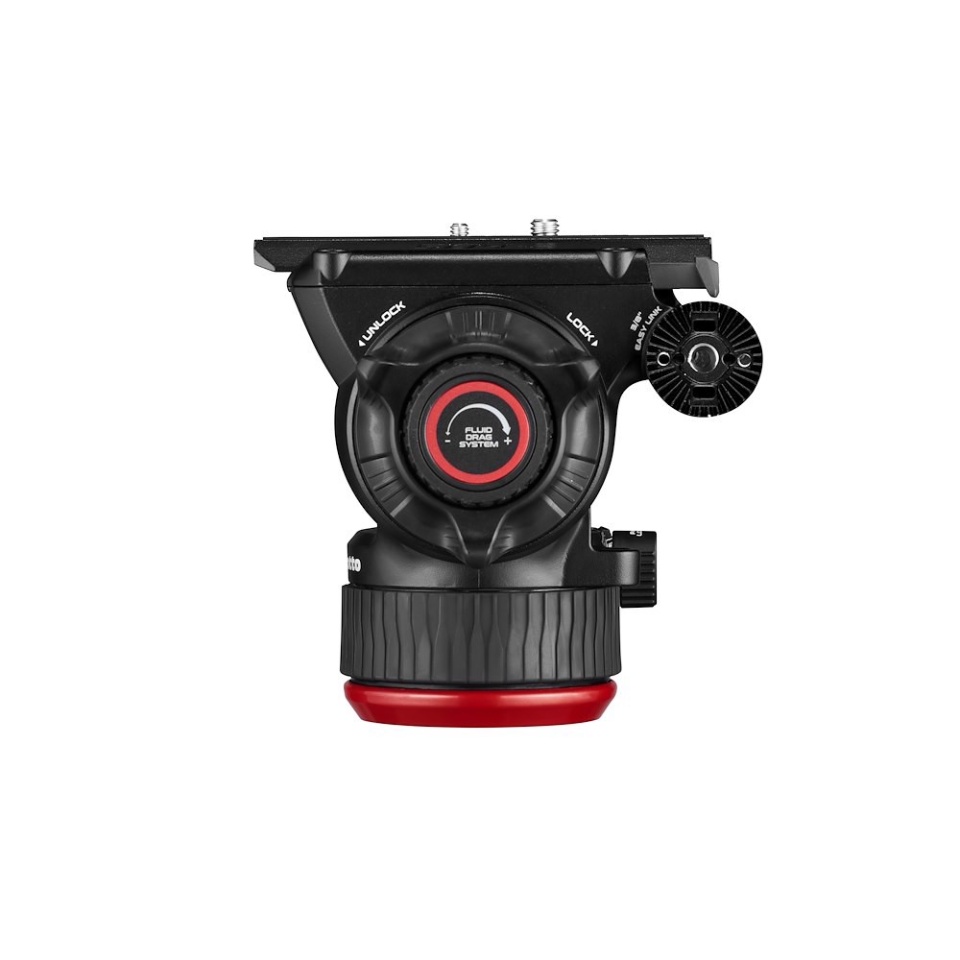

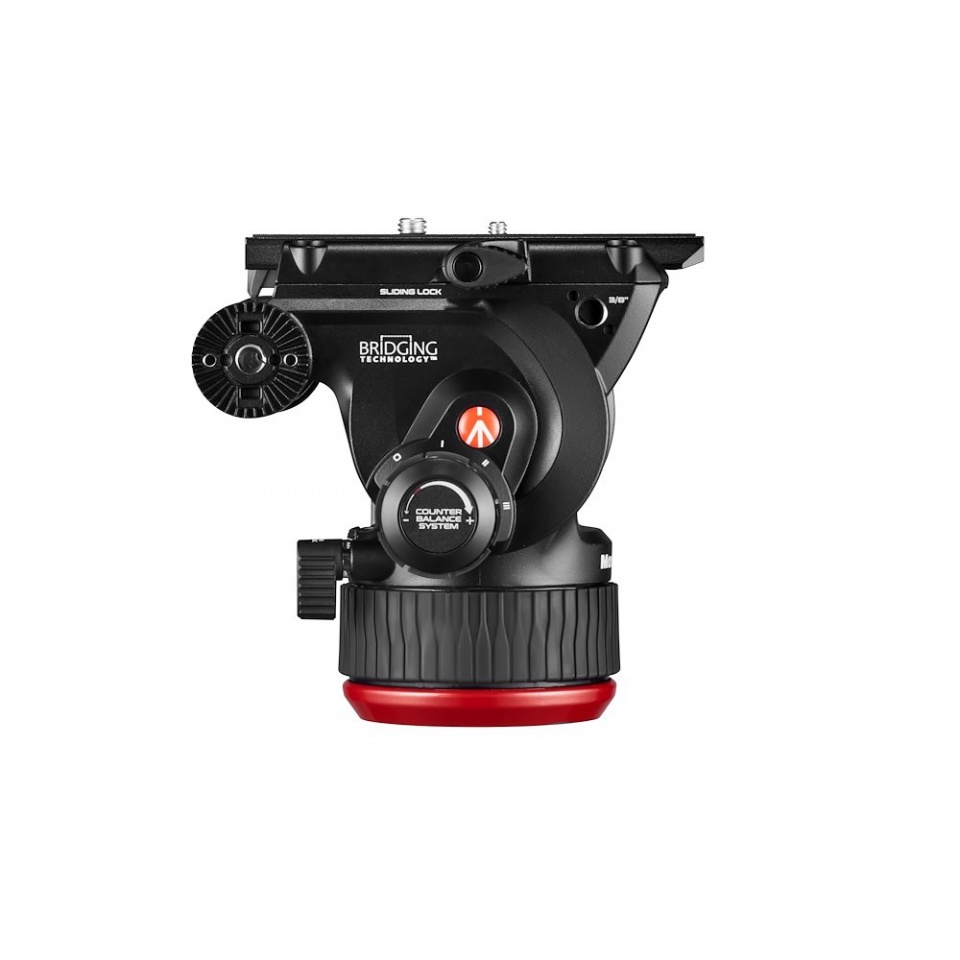

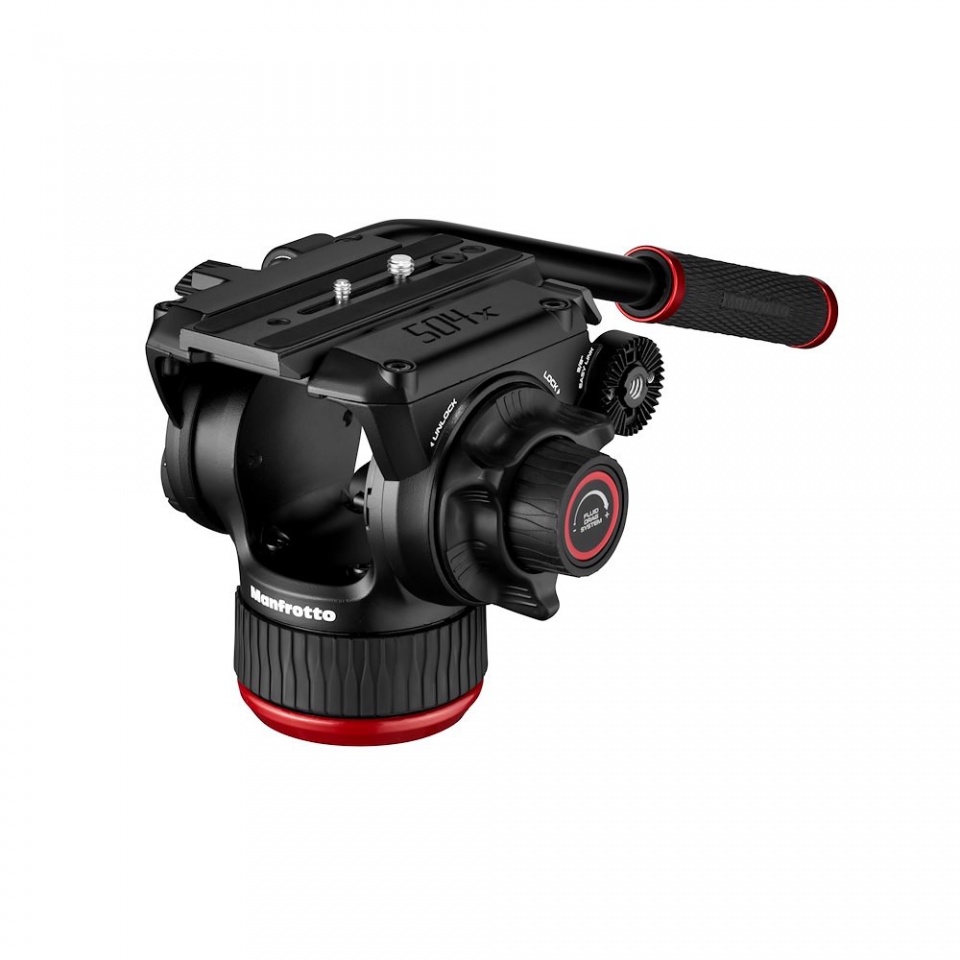

The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 6.5 kg at 55 mm C.O.G.

The tripod head is made from a brand-new catching aluminium design and has a maximum payload of 12 kg.

It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.

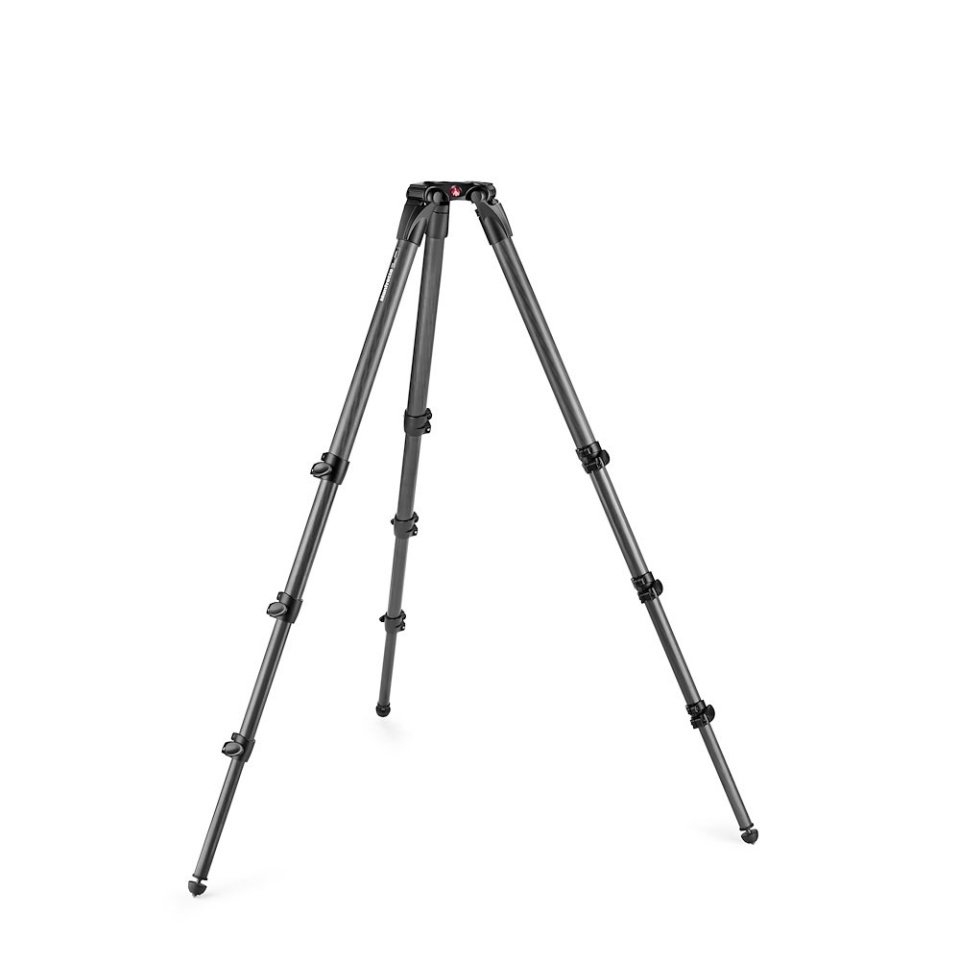

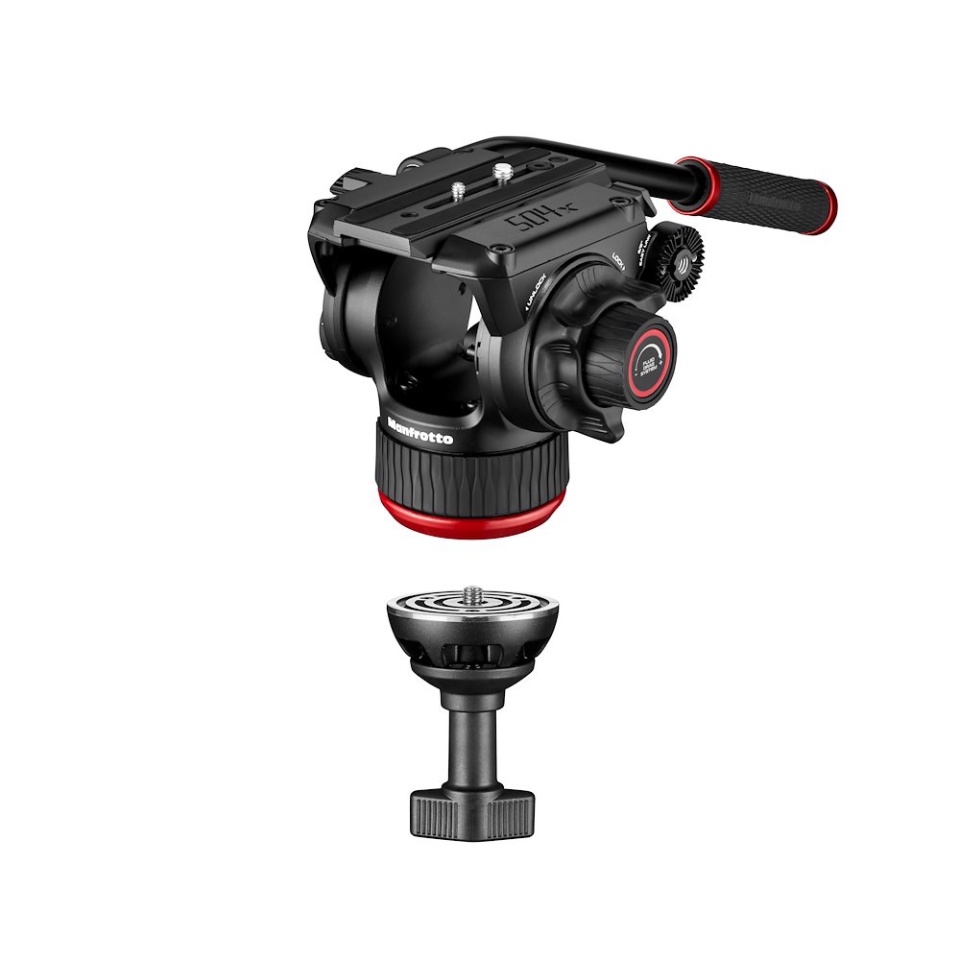

The 536 features an aluminum casting 100mm bowl and it comes with an aluminum adapter that converts the bowl into a 75mm, perfect in combination with the 504X head for fast levelling and precision. Thanks to its four section design, you can easily set up and disassemble in a flash, so you’ll never waste time on a shoot.

The tripod enables you to select the exact angle that suits you thanks to the leg angle selector. Together with the head you can move smoothly up and down, from 40.5cm to 217.5cm.

Supplied with its own padded carrying bag.


Weight: 5.84 kg

Safety Payload UNI/PdR 105:2021: 12 kg

Counterbalance System: Variable Steps

Counterbalance Weight: 2.2, 4.4, 6.5 kg

Maximum Height: 218 cm

Min Height: 42 cm

Base Diameter: 75 cm

Bubble Spirit Level (No.): 1

Center of gravity: 55 mm

Carrying Bag Included: yes

Center Column: no centre column

Closed Length: 87 cm

Colour: Black

Top Attachment: 1/4″ screw, 3/8″ screw

Powered by (batteries): Lithium

Easy Link: Yes (with antirotation)

Front Tilt: -70° / +90°

Head Type: Video/Fluid Head

Leg Type: Single

Leg Angles: 23°, 50°, 70°

Leg Lock Type: Flip Lock

Leg Sections: 4

Material: Aluminium, Carbon Fiber

Maximum Working Temperature: 60 °C

Minimum Working Temperature: -30 °C

Pan Bar Included: Yes

Pan Drag: continuously adjustable from 0 to max level

Panoramic Rotation: 360 °

Plate Type: 504PLONGR-1

Quick Release: Yes

Tilt Drag: continuously adjustable from 0 to max level

Accessory Compatibility: 114; 127V; 127VS; MVAPANBARM; MVAPANBARL

Additional information

Tripod set

With head



Video statīva max augstums

<220 cm max

Video tripod type

Single legs

Safety Payload Weight kg

f) 12kg

Bag included
