Description

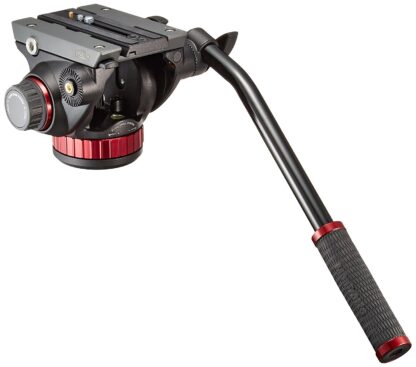

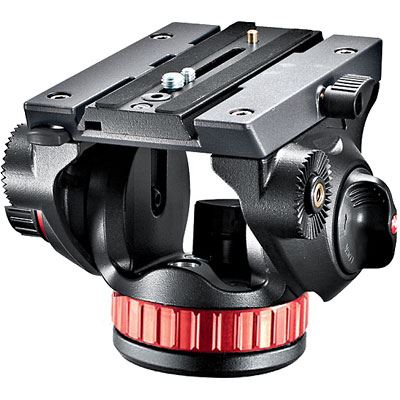

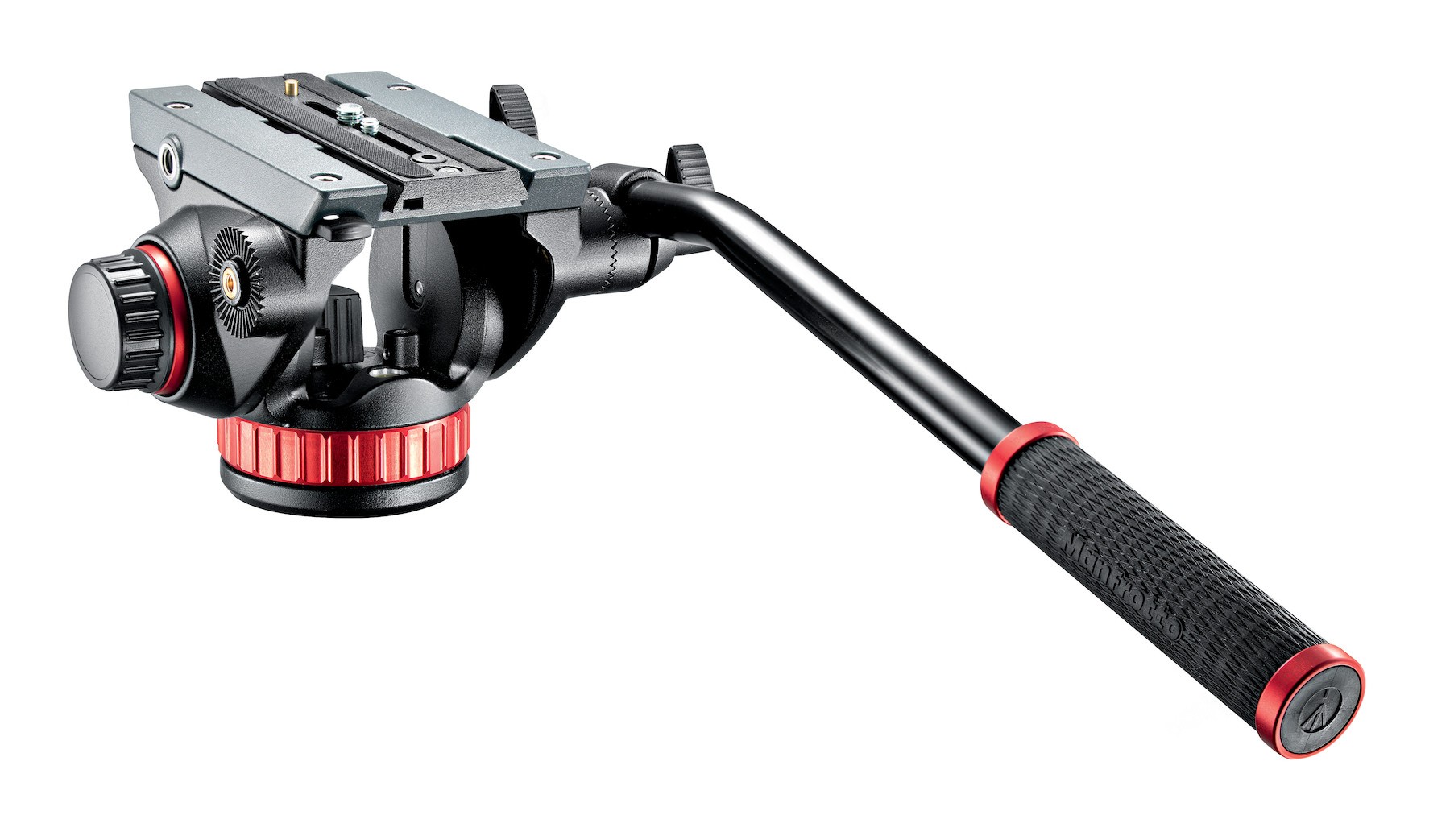

The Manfrotto 502 Fluid Video Head with flat base features variable fluid drag system for pan and tilt movements that’s cleverly incorporated into the design.
It’s ideal for the latest camcorder and HDSLR cameras supplied with external accessories. It has a maximum capacity of 7kg and features a Ø75mm half ball connection to ensure compatibility with most equipment today.
This video head also has a fixed counterbalance system of 4 Kg Last but not least, 3/8” Easy Link attachment points allow an external monitor or other accessory equipment to be fitted.
Specifications
Weight: 1.691 kg
Counterbalance System: Fixed
Counterbalance Weight: 4 kg
Base Diameter: 75 mm
Material: Aluminium
Bubble Spirit Level (No.): 1
Center of gravity: 55 mm
Safety Payload Weight: 7 kg
Colour: Black
Easy Link: Yes
Front Tilt: -80° / +90°
Ball Flat:Flat
Head Type: Video/Fluid Head
Maximum Working Temperature: 60 °C
Minimum Working Temperature: -20 °C
Pan Drag: continuously adjustable from 0 to max level
Panoramic Rotation:360 °
Plate Type: 504PLONG
Quick Release: Yes
Tilt Drag: continuously adjustable from 0 to max level
Working Height: 13 cm
Accessory Compatibility:MVAPANBARM; MVAPANBARL; 502HLV; 509HLV; 520BALL, 520BALLSH
