Description

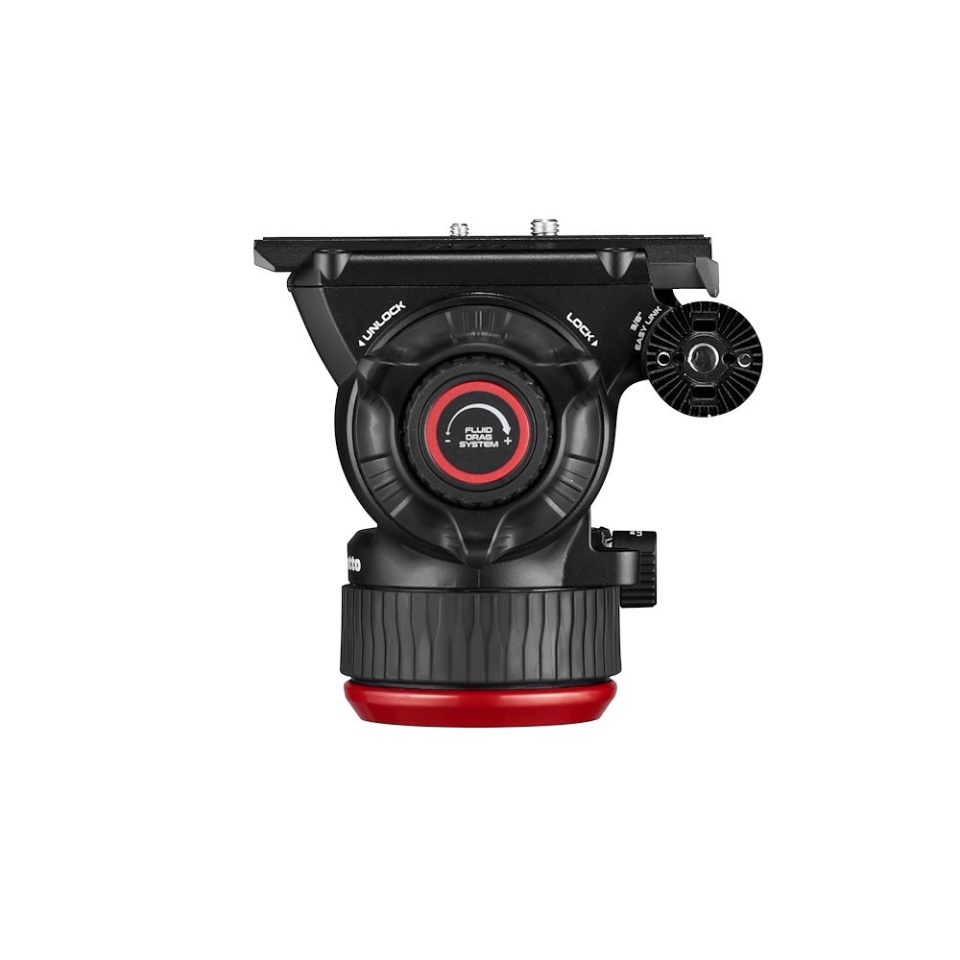

504X fluid video head is the evolution of the hugely successful 504HD.
It’s a more compact and lighter version that finally comes with flat base (base diameter 75 mm), developed to meet the needs of the most demanding videographers.
The head is made from a brand-new catching aluminium design, and has a maximum payload of 12kg.

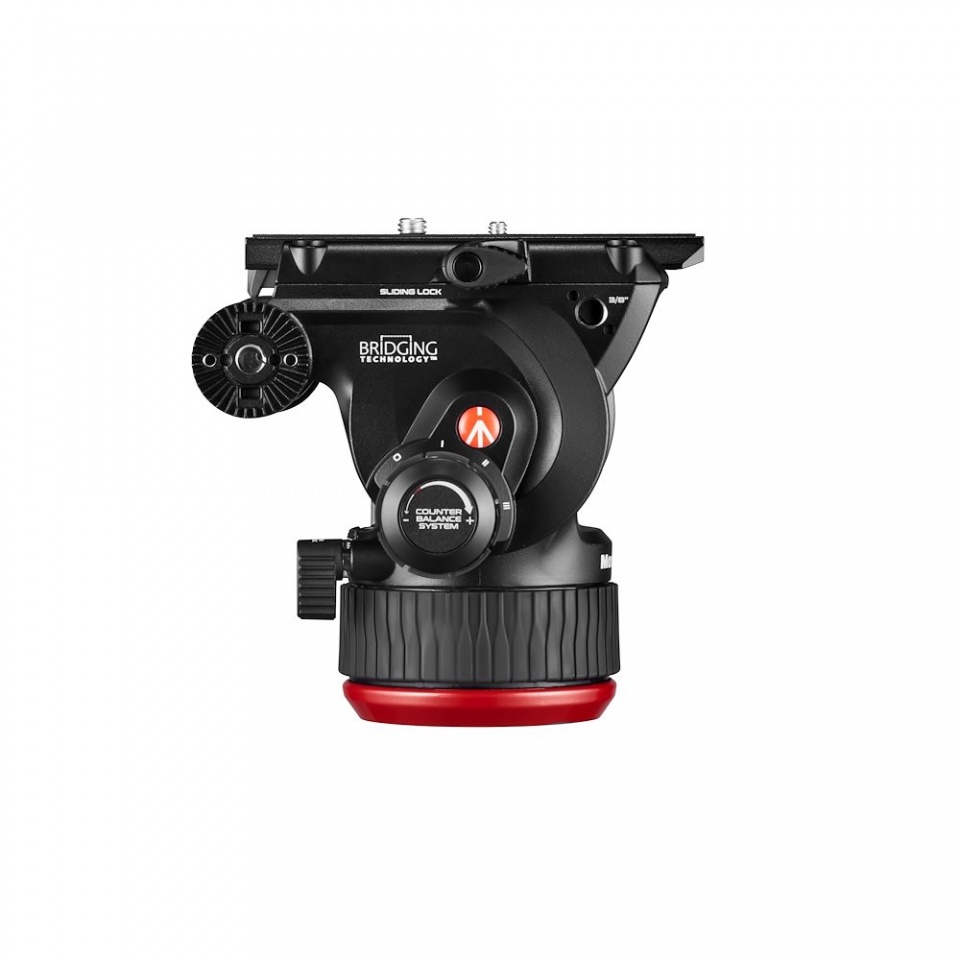

Utilising Manfrotto’s new fluid technology, the camera head allows you to capture judder-free smooth motion pans and tilts. It’s never been easier for the operator to create premium-quality video capture, thanks to a 4-step counterbalance system which can carry payloads of up to 6.5 kg at 55mm C.0.G. That makes using a wide range of different cameras easier and more practical.

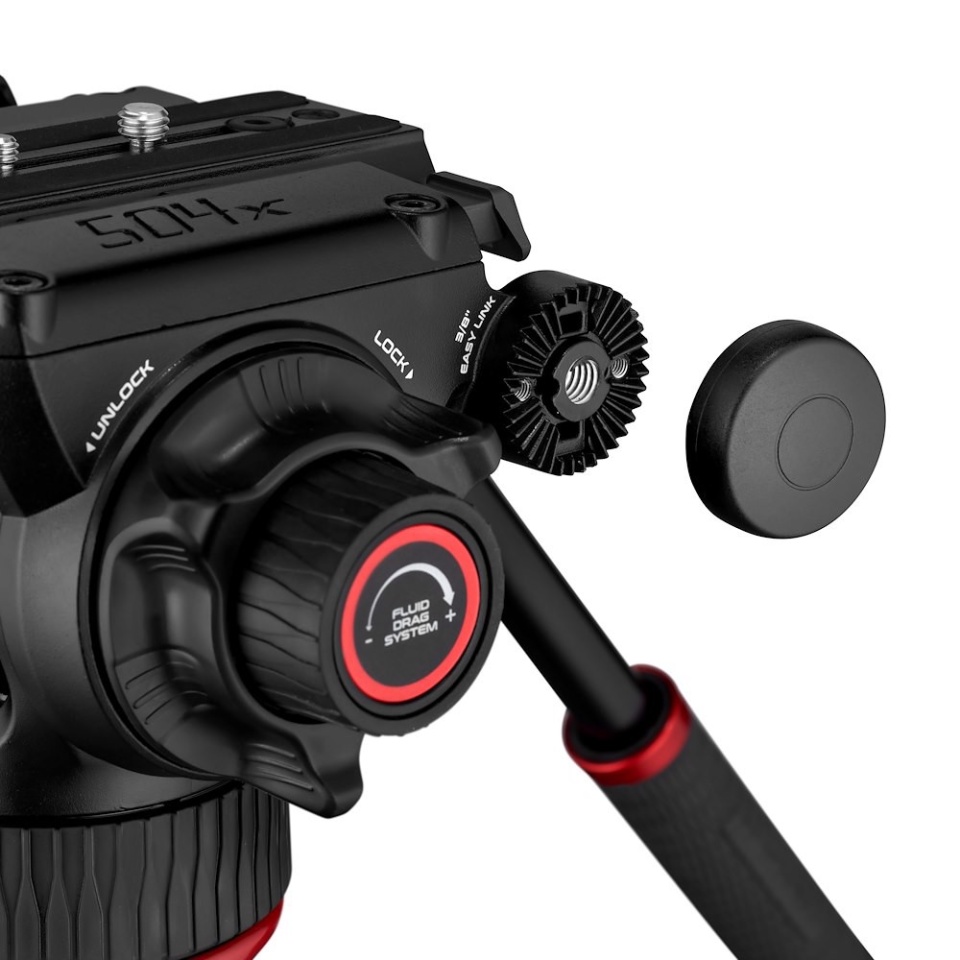

Two easy link 3/8” thread connections allow an external monitor or other accessory equipment to be fitted on the head side. On the left side there is a cap cover on the 3/8” easy link connector to avoid cutting during usage.

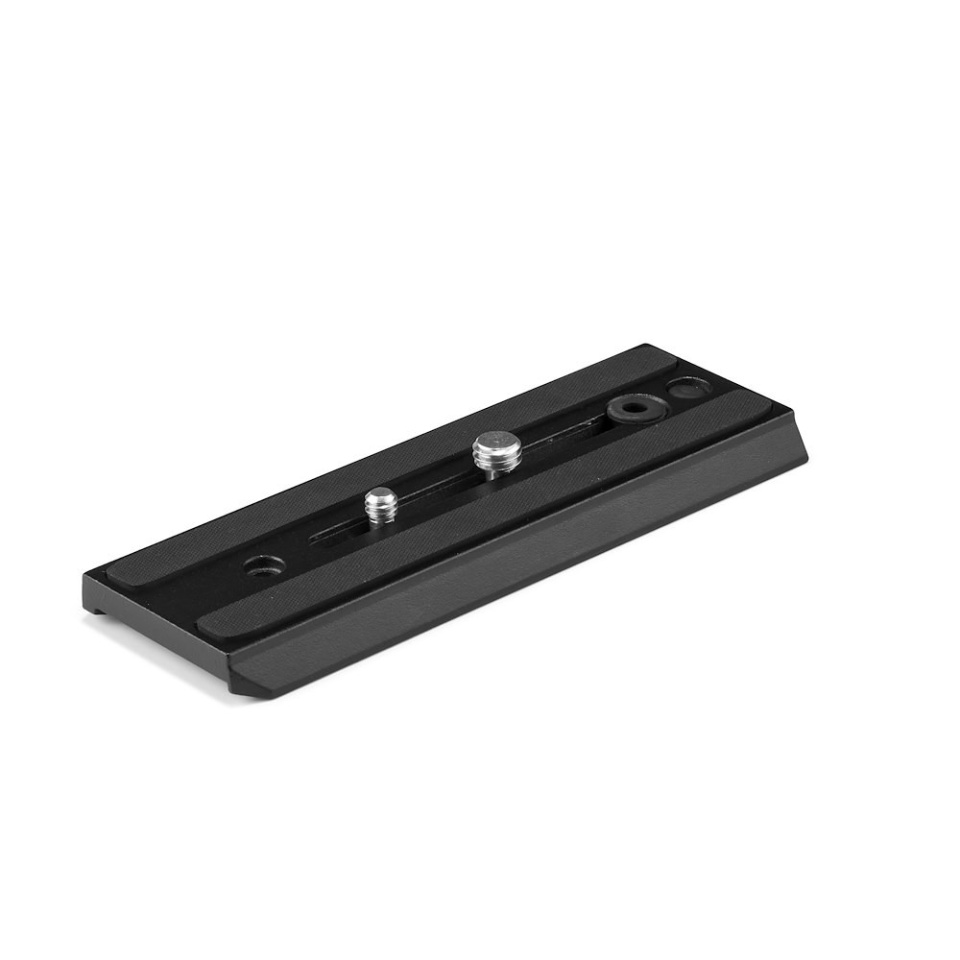

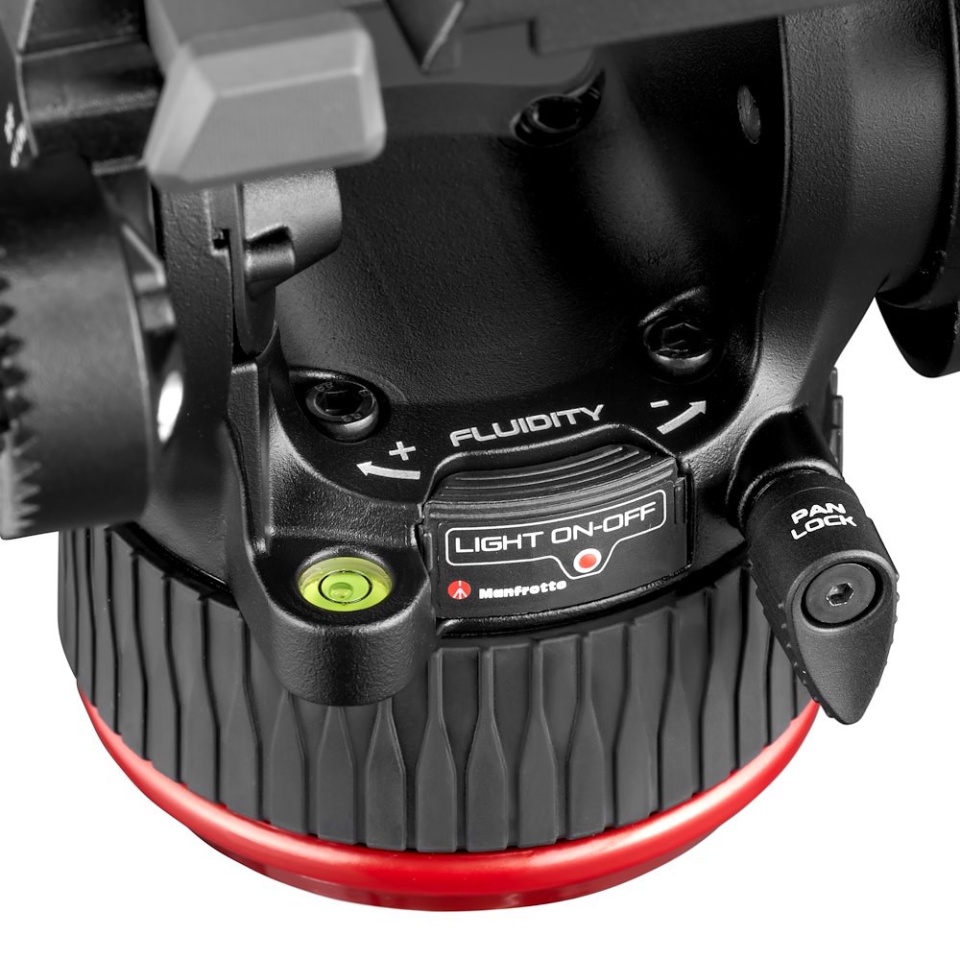

The sliding-plate side-lock attachment enables quicker set up of the camera, keeping video equipment stable and balanced. Head leveling is simple thanks to the clever backlit levelling bubble.
Specifications
Weight: 2 kg
Safety Payload UNI/PdR 105:2021: 12 kg
Counterbalance System: Variable Steps
Counterbalance Weight: 2.2, 4.4, 6.5 kg
Base Diameter: 75 mm
Material: Aluminium
Bubble Spirit Level (No.): 1
Center of gravity: 55 mm
Safety Payload Weight: 12 kg
Powered by (batteries): Lithium
Certifications: WEEE; RoHS
Top Attachment: 1/4″ screw, 3/8″ screw
Colour: Black
Easy Link: Yes
Front Tilt: -70° / +90°
Ball Flat: Flat
Head Type: Video/Fluid Head
Maximum Working Temperature: 60 °C
Minimum Working Temperature: -30 °C
Pan Bar Included: Yes
Pan Drag: continuously adjustable from 0 to max level
Panoramic Rotation: 360 °
Plate Type: 504PLONGR-1
Quick Release: Yes
Tilt Drag: continuously adjustable from 0 to max level
Working Height: 14.9 cm
Accessory Compatibility: MVAPANBARM; MVAPANBARL
